Description
The 10 Port USB 3.0 Hub will allow you to connect to any USB Drive, Tablet PC or USB Network Adapter in addition to any other USB peripheral needed for data transfer or charging time. The VL812 Controller chipset also features USB PHY technology which allows for backwards compatibility. This Hub will provide a transmission rate up to 5Gbps per each port.
The GearMo GM-3DH Series (Onyx) 10 Port USB 3.0 Hub features an extruded aluminum construction with a 15° ergonomic interface, which provides excellent heat dissipation, exquisite workmanship and a sleek profile. The 10 Port USB 3.0 Hub also integrates a charging controller circuit which provides Digitally Charging Ports (DCP) as well as Charging Downstream Ports (CDP) conformed to USB Battery Charging 1.2 spec. The hub’s port charging capacity is 3 times that of any ordinary USB charging port. Built-in over-voltage, over-current, and leakage safeguards combined with a Short-Circuit protection module keep the devices safe that are connected to the Hub. The 10 Port GM-3DH Hub provides you with an ideal solution to expand the amount of USB 3.0 Super-Speed ports available on your system.
Features & Specifications:
- Adds multiple USB 3.0 Super-Speed ports easily.
- Full aluminum construction with sleek profile and solid feel.
- Excellent heat dissipation.
- 15 degree ergonomic interface making USB 3.0 ports easily accessible.
- Unique Bright Blue LED indicator for device status
- Extremely fast and reliable USB 3.0 VL812 Control Chipset.
- Data transfer of up to 5Gbps per USB port.
- Supports over-voltage and instant current protection, protects connected device.
- Backwards compatible with USB 2.0.
- Plug and play support.
- Hot swap support.
Product Specifications:
- Product Name: GM-3DH Series Super Speed USB 3.0 HUB
- Product Model: GM-3DH10 (10 ports)
- Material: Full Extruded Aluminum
- Color: Black/Silver
- Dimension: 233x90x32 (GM-3DH10)
- Input: USB 3.0 x1 / DC-IN Power interface
- Weight: 335g (GM-3DH10)
OS Support:
- WinXP, 2000, Vista, 7, 8, and Windows 10
- Mac OS 10.X /Linux

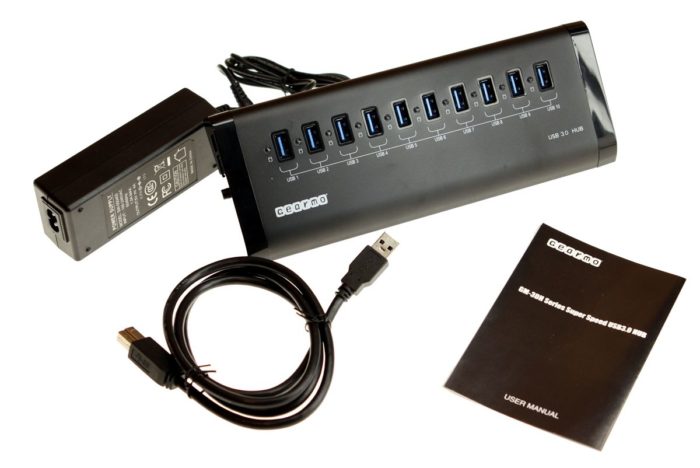

Package Contents:
- High Speed 10 Port USB 3.0 Hub
- High Speed 3.5’ USB 3.0 Cable
- Power Supply
- Manual
+1 (727) 209-1300
+1 (888) 688-2188
Jack J. Schmitz –
Works as advertised. Built strong and heavy (which you want with ten cables coming out of it). Love the blue LED’s for each port. With the cables on top, they are easy to plug and unplug. the slopping face allows you to label each port if you like. I would recommend this for a buy.
Shaun R. Price –
I was pleasantly surprised by the quality of this unit. It works as advertised. I would only suggest that if it had some dedicated charging ports, it would be fantastic! The only slightly annoying thing about this unit was that the ports for the USB devices are a bit tight. I am concerned over time that they might be damaged by the overly tight fit…but it may never happen.
Les Farthing –
This is a very nicely made product. Replaces a very cheap 10.00 unit that was always breaking down. It’s a joy to use…simple, meets the need.
The_Last_Sargon “The Red Purifier” –
So far I love this product. I originally had an Anker 7 port hub, but the problem with that is that you can only plug in two devices and the rest were just charging ports. Also on occasion it would shutoff and the only way that windows would recognize it if I rebooted the computer. This product so far hasn’t done anything like the Anker did.
I love the design and the feel of it. The USB ports are well designed and placed and the fact that they are on top instead of the sides which is why I mainly purchased it. I plan on using this for future Bitcoin miners that I will buy. I have two of them hooked up and working beautifully with no problems.
I would recommend this product for sure.
Terry –
I got this to run my Antminers U2+ ASIC miners. I was able to plug in all 10 without the heatsinks touching the miner next to it. And there is enough power to run them all at a slight overclock so that’s a bonus. Mine came with a 12V, 4 amp adapter not the 3 amp one listed.
For those not knowing what I’m talking about, basically these miners use just over 0.5 amps per and most USB 2.0 hubs can’t run enough power. This hub does. Also the spacing is good and I would highly recommend it. If I can use it for these high demand devices, anything else thrown at it should be good!
Matt Barrios –
The hub worked out of the box, it accepts 2.0 USB flash drives, and recognized a USB 1.2 wireless network adapter so it’s legacy compatible devices can be plugged into it. Very nice USB 3.0 Hub.
