10-Port USB Type-A 3.2 Gen 1 Hub – 15kV ESD Protection

$89.98

Features

  • Extensive Connections: Expand your host system’s peripheral capabilities with 10 USB Type-A ports.
  • Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.
  • Flexible Power: Power your way with a wide input voltage range of 9 ~24V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.
  • Fast Data Transfers: Experience fast data transfer rates with USB Type-A ports offering 5Gbps.
  • Upstream: USB Type-B
  • Downstream:10 USB Type-A
  • Power Input: 3-Pin Terminal Block, DC Barrel
  • Mounting Styles: Surface, Wall, and DIN-Rail

Product Documents

Product Documentation

In stock

Model #: GM-HU310A Categories: ,

Didn't Find What You Were Looking For? Support

Description

The GM-HU310A Gearmo USB 3.2 Gen 1 hub is an industrial metal hub with 10 downstream USB Type-A port. All ports, both downstream and upstream are conveniently located on the front facing panel. The GM-HU310A USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 1 standards, data speeds up to 5Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.

Features:

  • Adds 10 3.2 Gen 1 compliant USB Type-A ports
  • USB Type-A ports offer 5Gbps data transfer rate

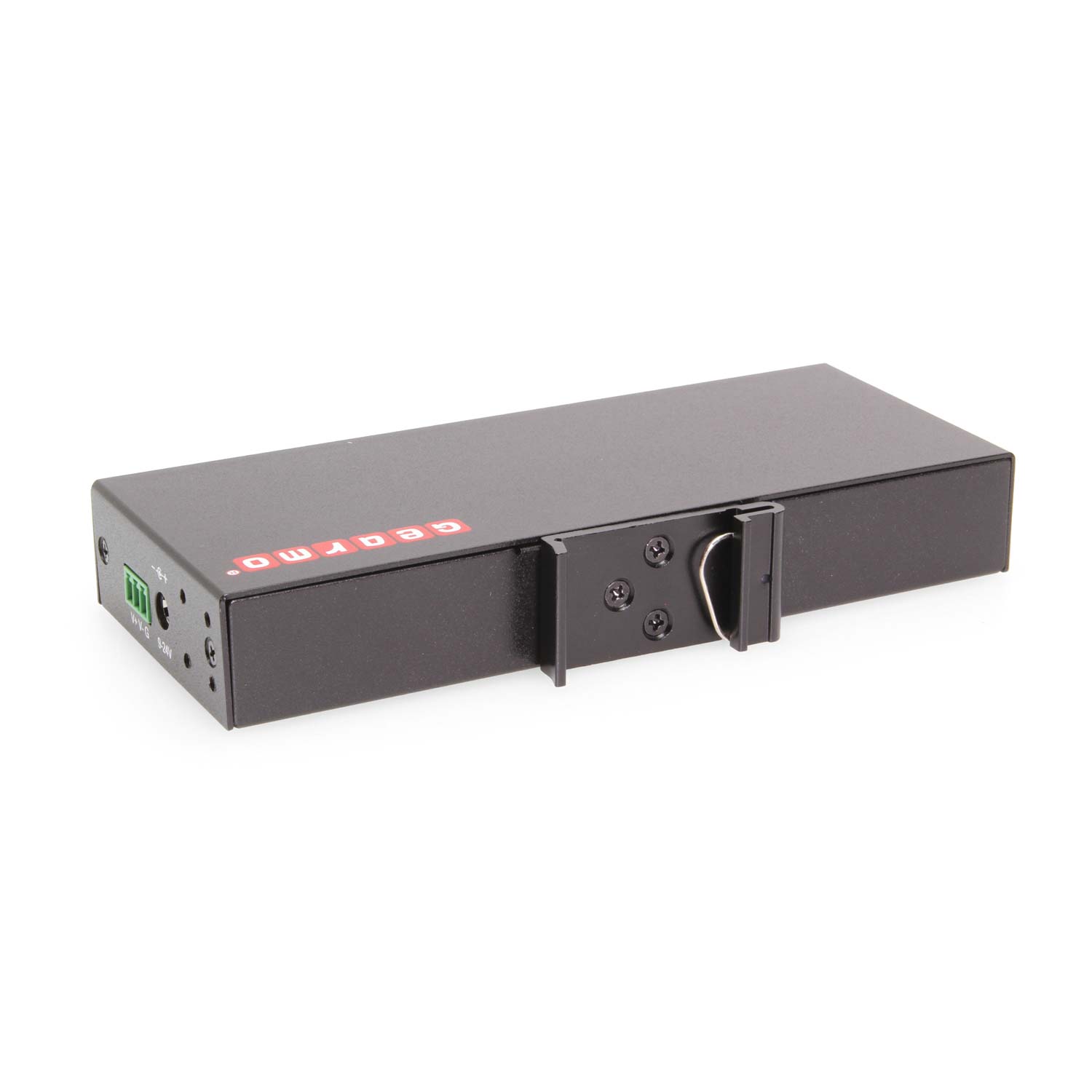

  • Rugged metal chassis with surface & DIN Rail mount support
  • 9~24V DC power input with an included DC Barrel power supply
  • LED indicators for each port to show connection confirmation
  • Upstream USB Type-B port
  • 15kV ESD protection for all USB ports

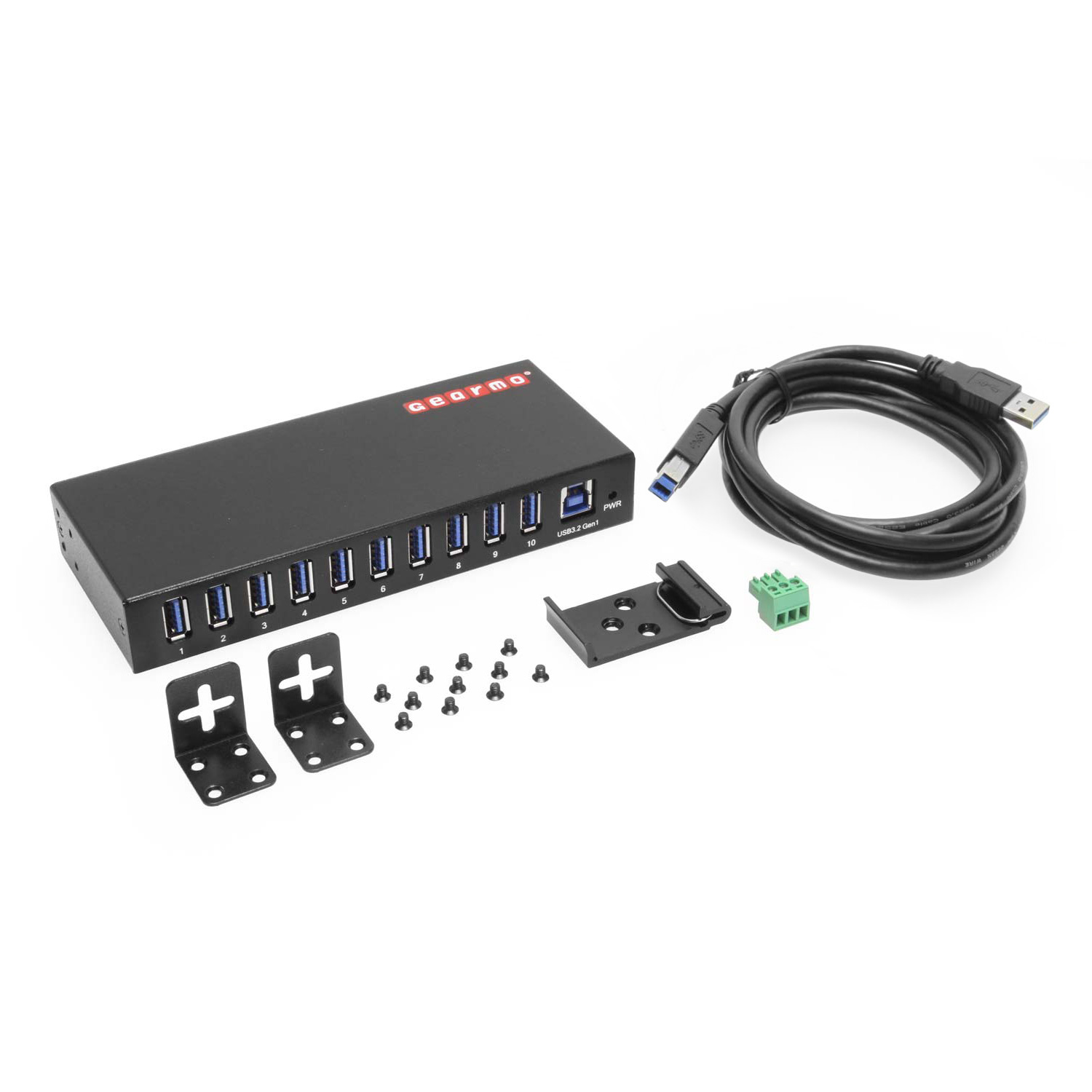

Package Contents:

  • Industrial 10-Port USB 3.2 Gen Type A Industrial Hub
  • User Manual
  • USB Type-A to Type-B Cable
  • DIN-Rail & Wall Mounting Kit
  • 3-Pin Terminal Block
  • Screw Package

Additional information

Weight 1.1 lbs
Dimensions 8.25 × 7.25 × 2.5 in
Color

Black
Item Dimensions

6.299 × 2.461 × 0.906 in.
Downstream Ports

10x USB Type-A
Item Weight

0.725 lbs.
LED Indicators

Power
UPC

045079164390
Upstream Ports

1x USB Type-B
USB Specification

USB 3.2 Gen 1
Input Voltage

9~24V DC
Material

Steel
Power Source

3-Pin Terminal Block, DC Barrel
Operating Temperature

0 – 50°C (32 – 122°F)
ESD Protection

15kV
