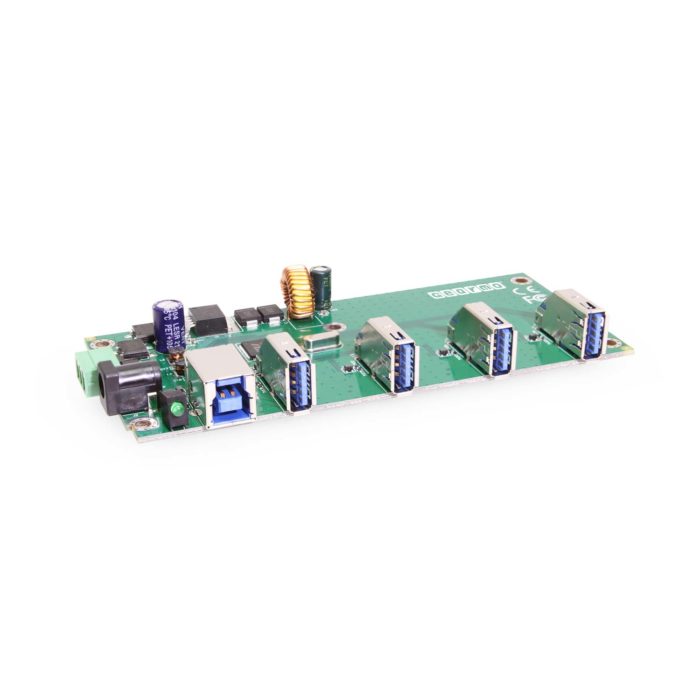

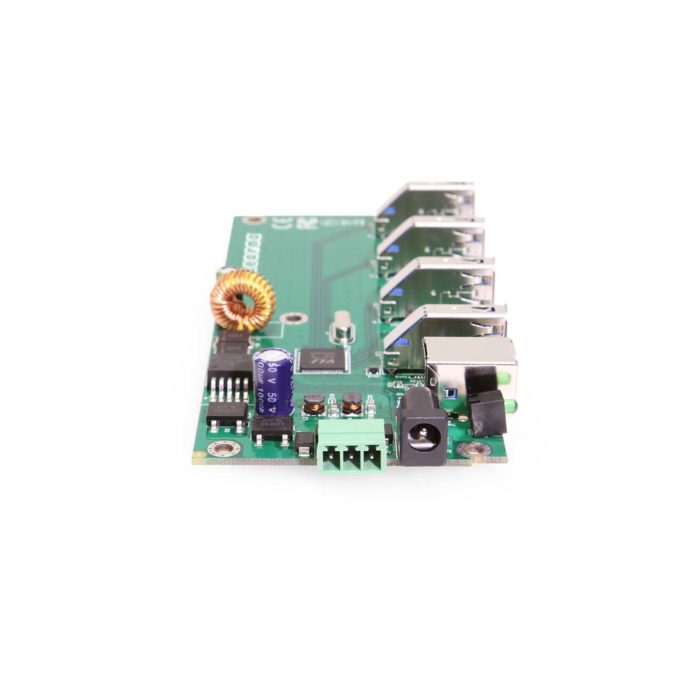

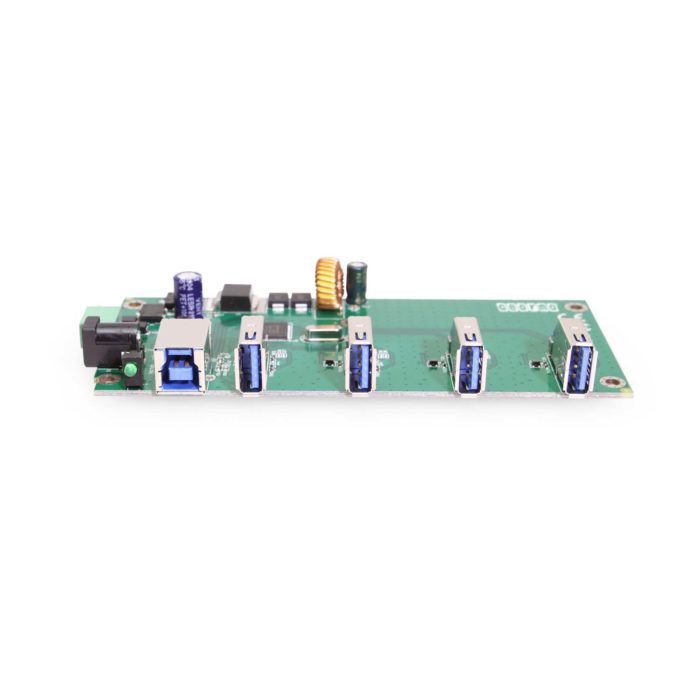

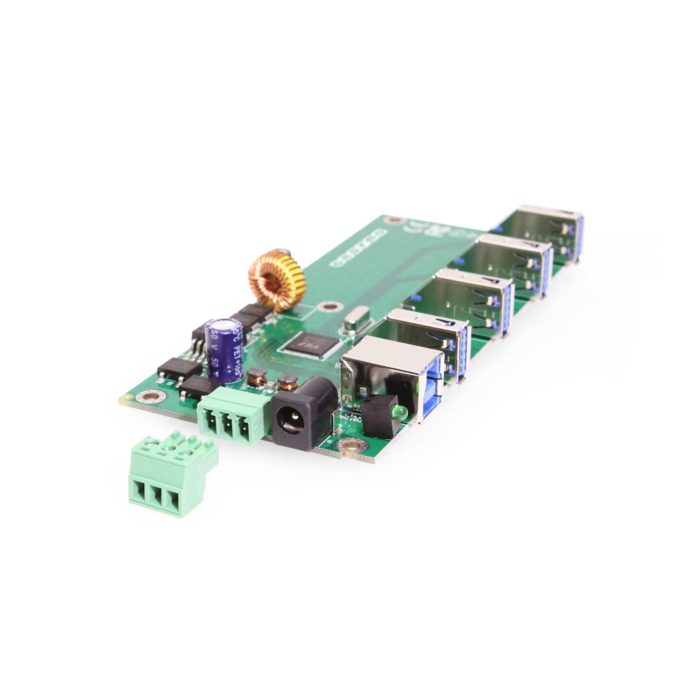

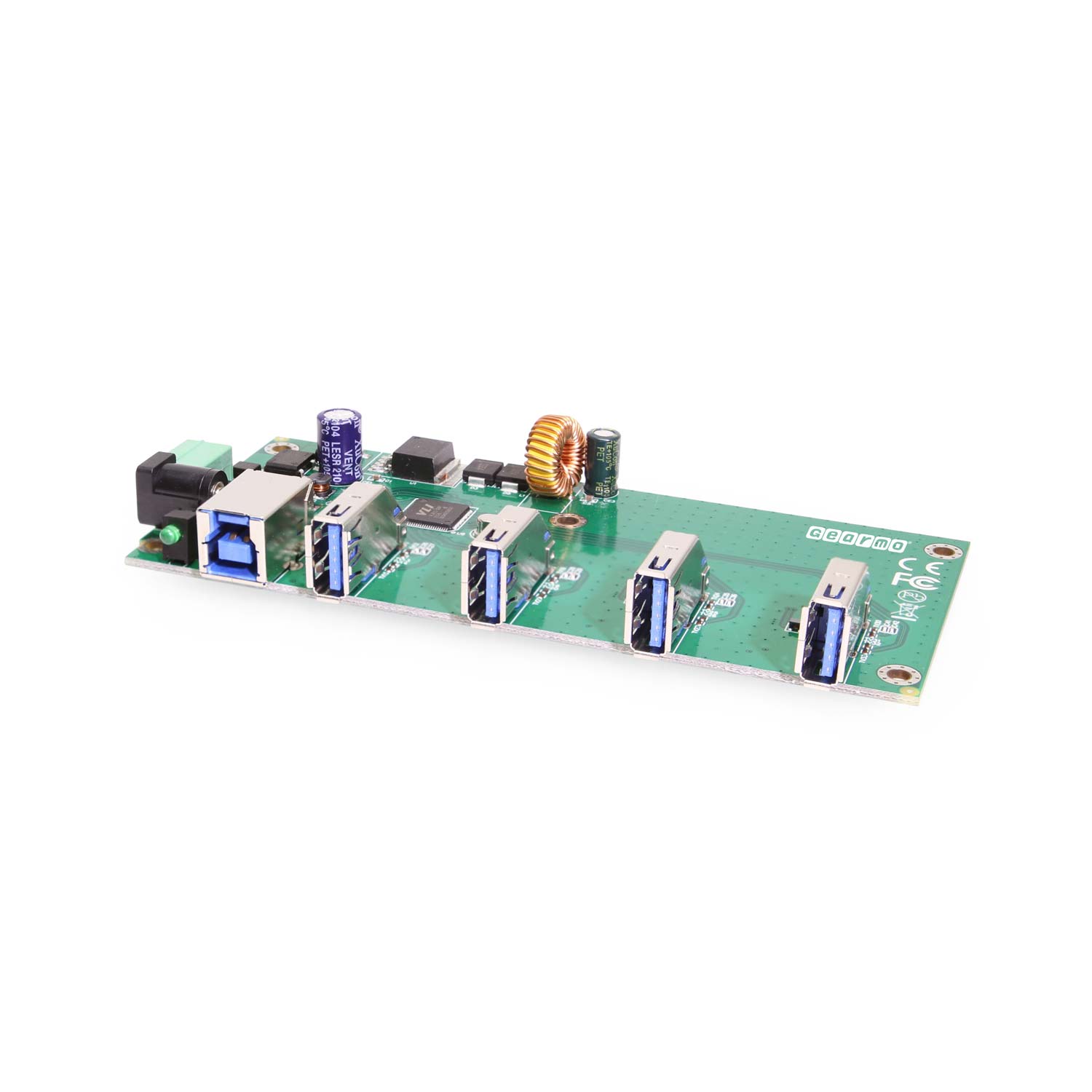

4 Port USB 3.2 Gen 1 Hub PCBA w/ ESD Surge Protection

Description

The (GM-HU34-PCBA) High Speed 4-Port USB 3.0 Hub PCBA is designed as a Super-Speed hub board. The USB 3.2 Gen 1 Super-Speed hub board supports 4 USB 3.0 upstream port connections and 1 USB Type “A” to “B” Downstream from the host computer. The GM-HU34-PCBA Hub uses VL811 + B2 chipset and supports and is fully compliant with USB 3.2 Gen 1 Specifications and supports UASP function.

The USB 3.2 Gen 1 4-Port Hub board includes an optional 9-24V power jack receptacle for power consuming devices and separate 3-wire terminal block power connector. The 4 port USB 3.2 Gen 1 Hub includes independent over-current detection and, circuit protection, and Power input surge protection of 600W each port.

Features:

• Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
• Adds 4 additional USB High Speed ports
• Redundant 9VDC to 24VDC power input
• 15KV ESD USB interface protection
• Over-current detection and protection circuit design

Specifications:

• Operating Temperature:0°C – 40°C
• Operating Humidity: 5% – 85%
• Storage Temperature: -20°C ~ 50°C
• Storage Humidity: 5% – 95%
• Operating Altitude: -1000 to 10000 FT.
• Chipset: VIA VL811+
• Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
• Supported OS include Windows XP, 7, 8, Windows 10, 11, Mac OS x and Linux
• Compliant with Universal Serial Bus 3.0 Specification
• Maximum data transfer rate: 5Gbps
• Surge Protection: 600W (max)
• Item Dimensions: 5.45 × 2.52 × 0.69 in.
• Interfaces/Ports:
  • Input: 1, 9-pin, USB 3.0, Type B, Female
  • Input: 1, Terminal block (3-Wire), Power
  • Input: 1, DC power adapter jack (power adapter not included)
  • Output: 4, 9-pin, USB 3.0, Type A, Female

Power Requirements:

• Input voltage: 9VDC~24VDC
• Output current: 900mA per port (max)
• Power consumption: 3.6W

Package Contents:

• 4 Port USB 3.2 Gen 1 Hub PCBA
