Description

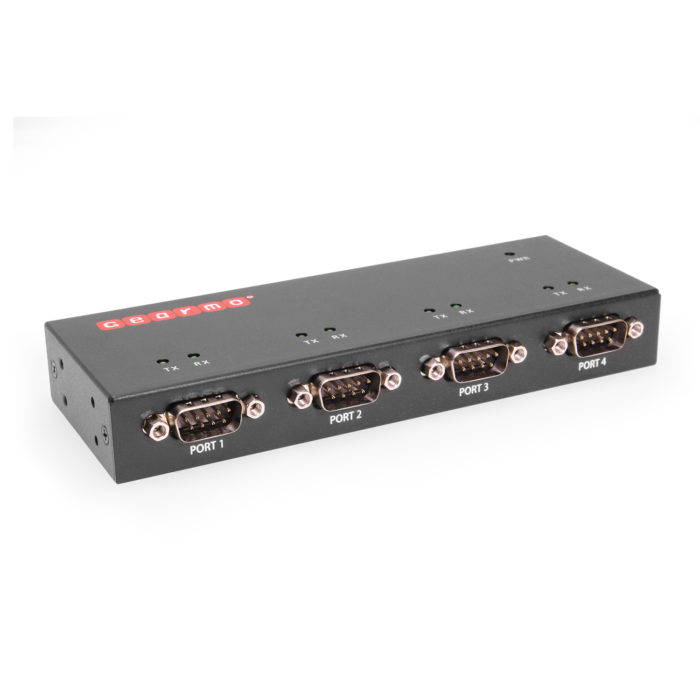

Gearmo’s 4 port Industrial RS232 DB9 adapter, connects to your Laptop or desktop through a single USB port while providing you with 4 fully addressable DB9 RS232 Com ports, these ports can be easily configured in your systems device manager. The GM-FTDI4X-M is housed in a rugged chassis for installations in offices, labs, warehouses, heavy machinery, and automation equipment. For most installations, the self-powered configuration is standard, a powered option is also available on the unit for those who need pass-through power, supporting variable voltage 9~48VDC input.
Features:
- 4x DB9 Serial Ports

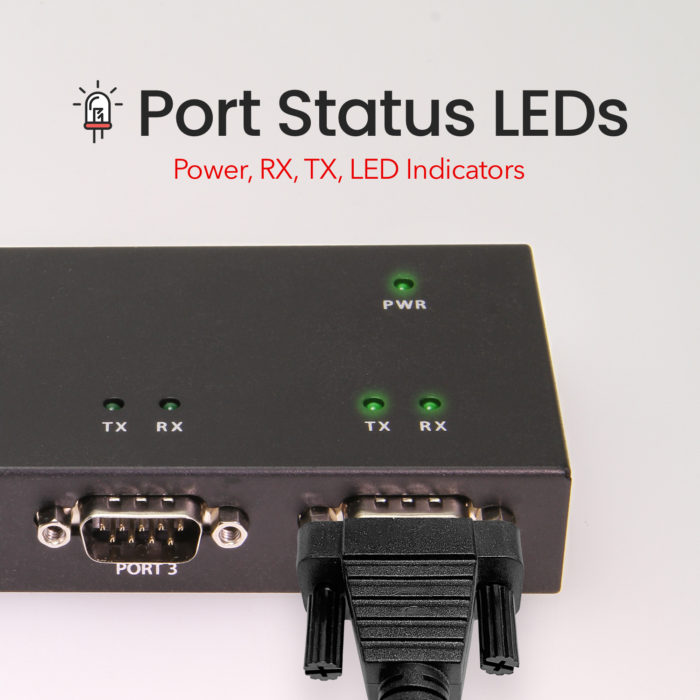

- Power, RX, TX, LED Indicators

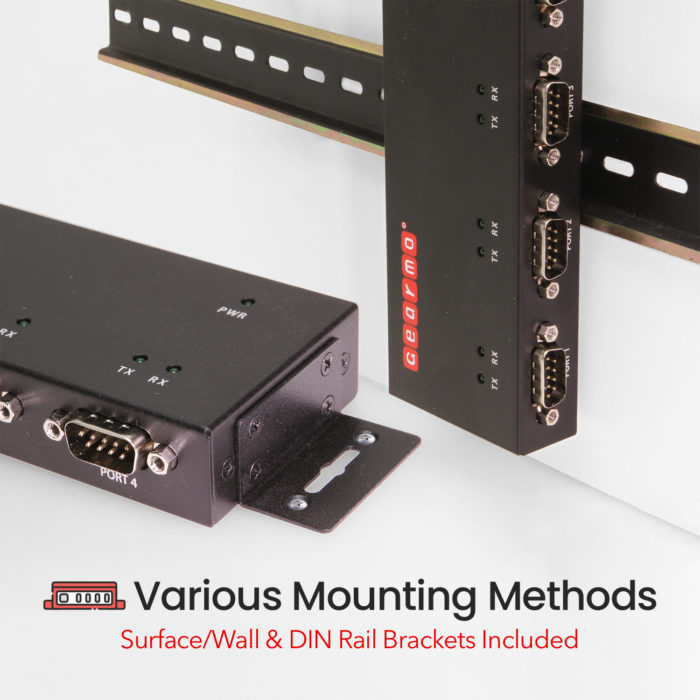

- Surface/Wall and DIN Rail mounting brackets included

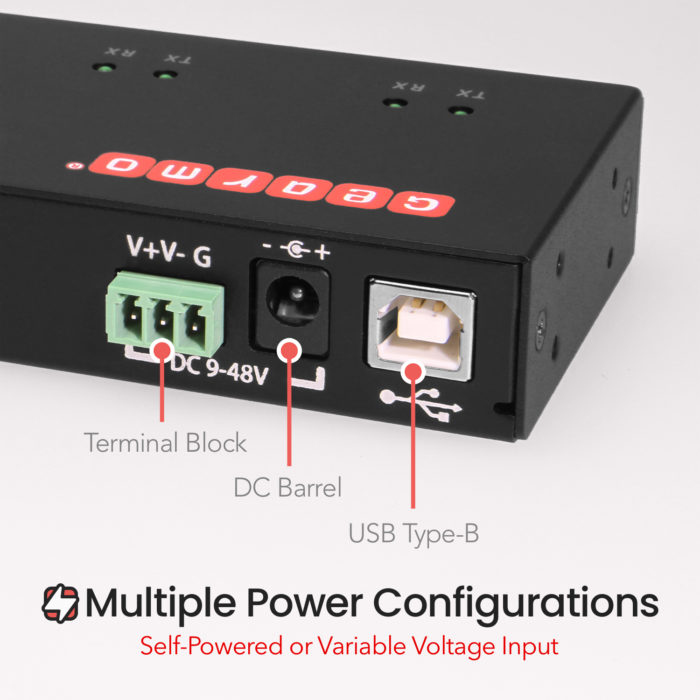

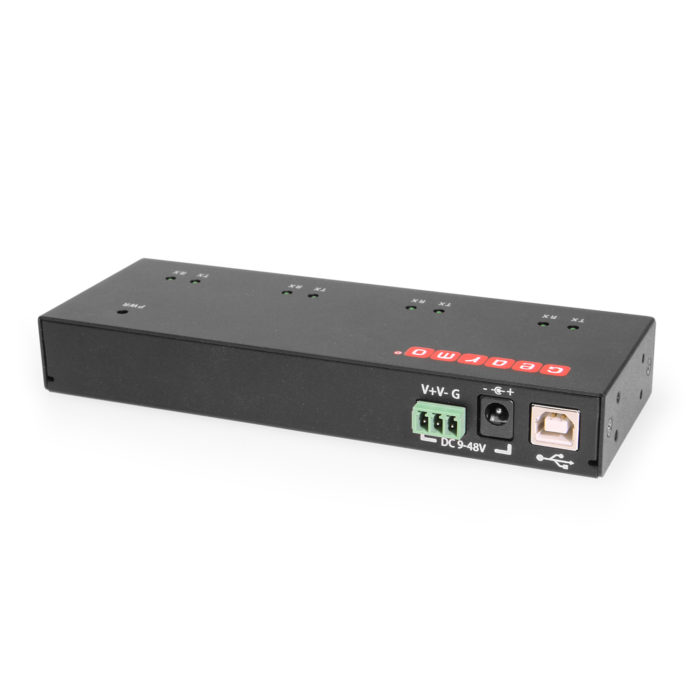

- Supports Self Power and Variable Voltage input 9 ~ 48V
- Rugged Metal Chassis
- Supports Windows 7, 8, 10, and 11, Linux, OSX
Specifications:
| Model | GM-FTDI4X-M |
| Host Interface | USB2.0 |
| Chipset ID | FT4232HL |
| External Connectors | 4×9-pin DB9 male
1xUSB type B Female |
| Serial Protocol | RS-232 |
| Maximum Data | 921.6kbps |
| Data Bits | 7,8 |
| Parity | Odd,Even,Mark,Space,None |
| Stop Bits | 1,2 |
| Buffer Size | 4096 byte Transmit and Receive |
| Enclosure Material | Metal |
| Mounting Options | Wall/Surface,DIN Rail |
| Operating Temperature | 0℃~55℃ |
| Storage Temperature | -20℃~85℃ |
| Humidity | 5％~95％RH |
| Dimensions | 160X62.5X23mm |
| Weight | 281g |
| Compatible Operating systems | Windows 7, 8, 10, 11, Linux, Mac OS 10.X |
DB-9 Pin Assignments:
| Pin | Assignment |
| 1 | DCD |
| 2 | RXD |
| 3 | TXD |
| 4 | DTR |
| 5 | SG |
| 6 | DSR |
| 7 | RTS |
| 8 | CTS |
| 9 | RI |

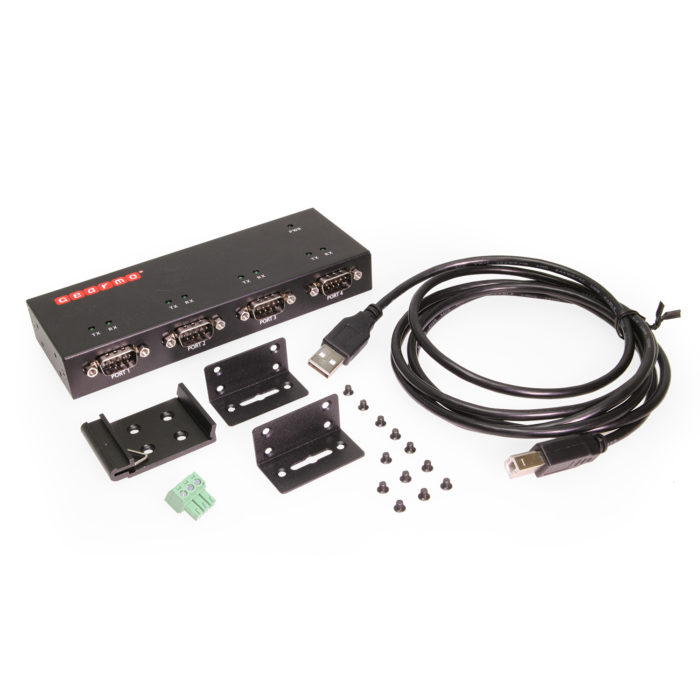

Package Contents:
- 4-Port Industrial USB to RS-232 Serial Adapter
- User Manual
- Driver CD
- USB 2.0 Type-A to Type-B Cable
- DIN-Rail and Wall Mount Kit
