Industrial 4-Port USB 3.2 Gen 2 Type-C Hub w/ESD Protection

Description

Gearmo USB 3.2 Gen 2 Rugged 4 Port USB-C Hub

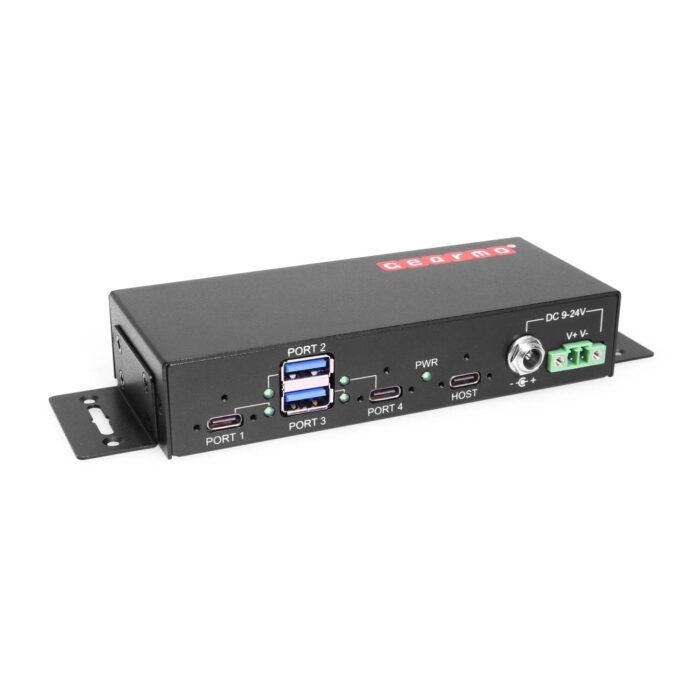

The (GM-HU34G2) High Speed 4-Port Type-C Hub is designed as a Super-Speed+ rugged industrial hub with mounting brackets and DIN-Rail mount included. Gearmo’s USB 3.2 Gen 2 Super-Speed+ metal Hub supports 2 USB-A downstream ports, 2 USB-C downstream ports, and 1 USB-C upstream port.

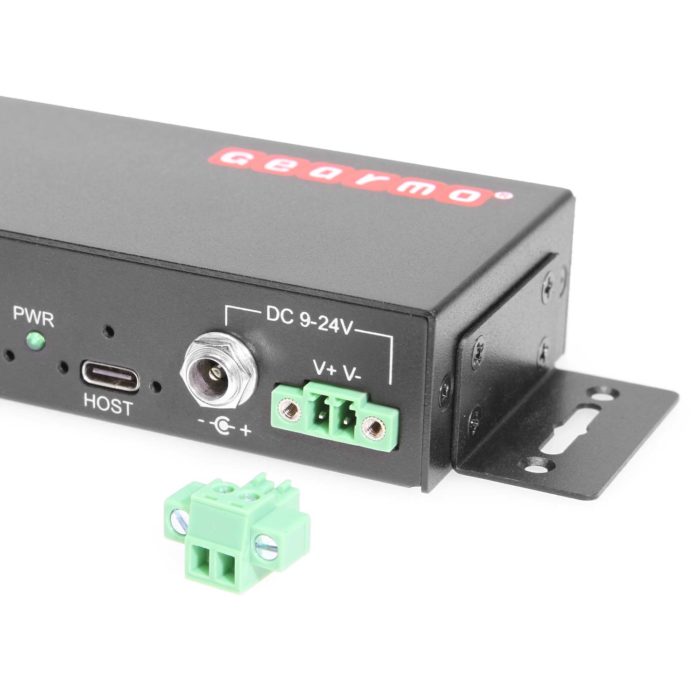

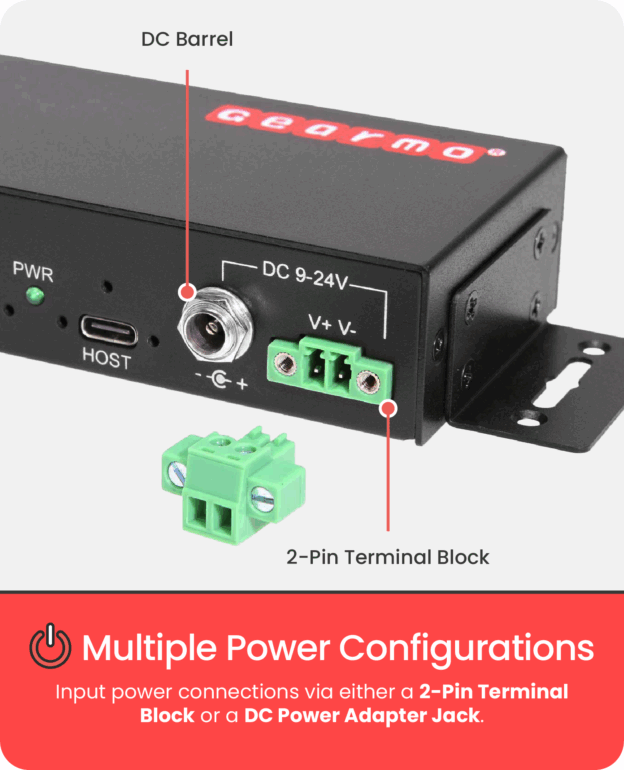

The USB 3.2 Gen 2 4-Port Hub includes an optional 9~24V power jack receptacle for power consuming devices and separate 2-wire terminal block power connector for use with DIN-Rail mounted operations. The Gearmo 4 port USB-C industrial Hub includes 15kV ESD surge protection.

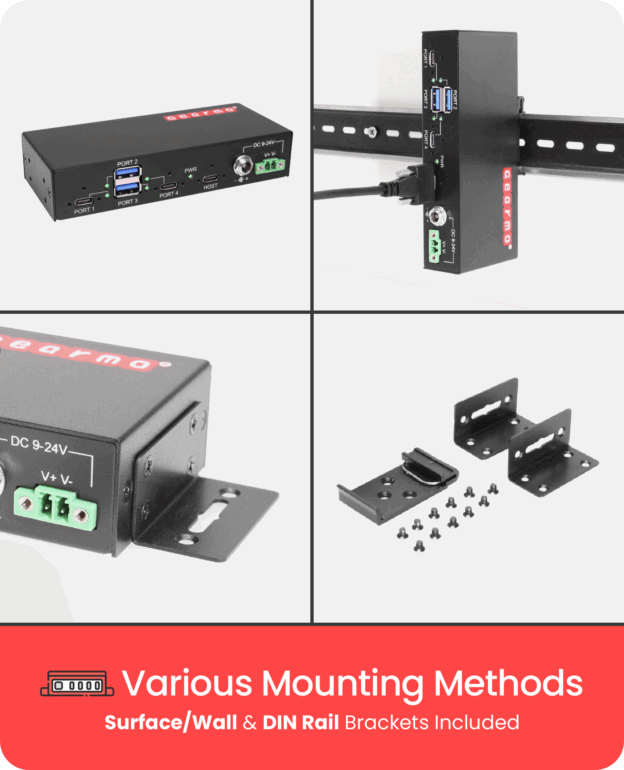

Mounting Methods

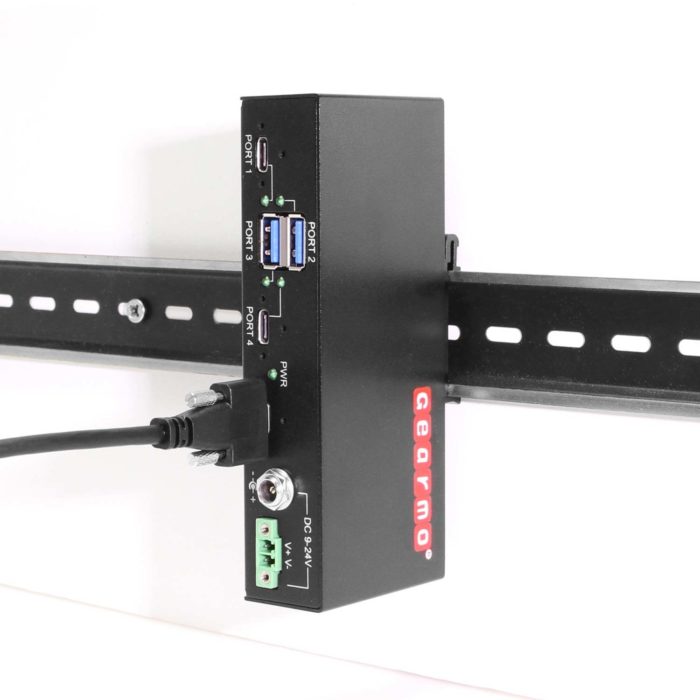

The GM-HU34G2 USB 3.2 Gen 2 Hub has multiple mounting options available depending on its usage. The Hub can be mounted via mounting brackets that are secured by four individual screws per bracket on both ends of the Hub. The bracket flange is a slotted design to allow for movement when fastening the Hub to a wall or table top. The GM-HU34G2 USB 3.2 Gen 2 Hub also includes a DIN-Rail mounting bracket that secures to the rear panel via three screws keeping the Hub secured to the DIN-Rail.

Hub Features

• Adds 2 additional USB-A ports and 2 USB-C ports
• Wall and DIN rail mount support
• Industrial grade rugged metal enclosure design
• Redundant 9VDC to 24VDC power input

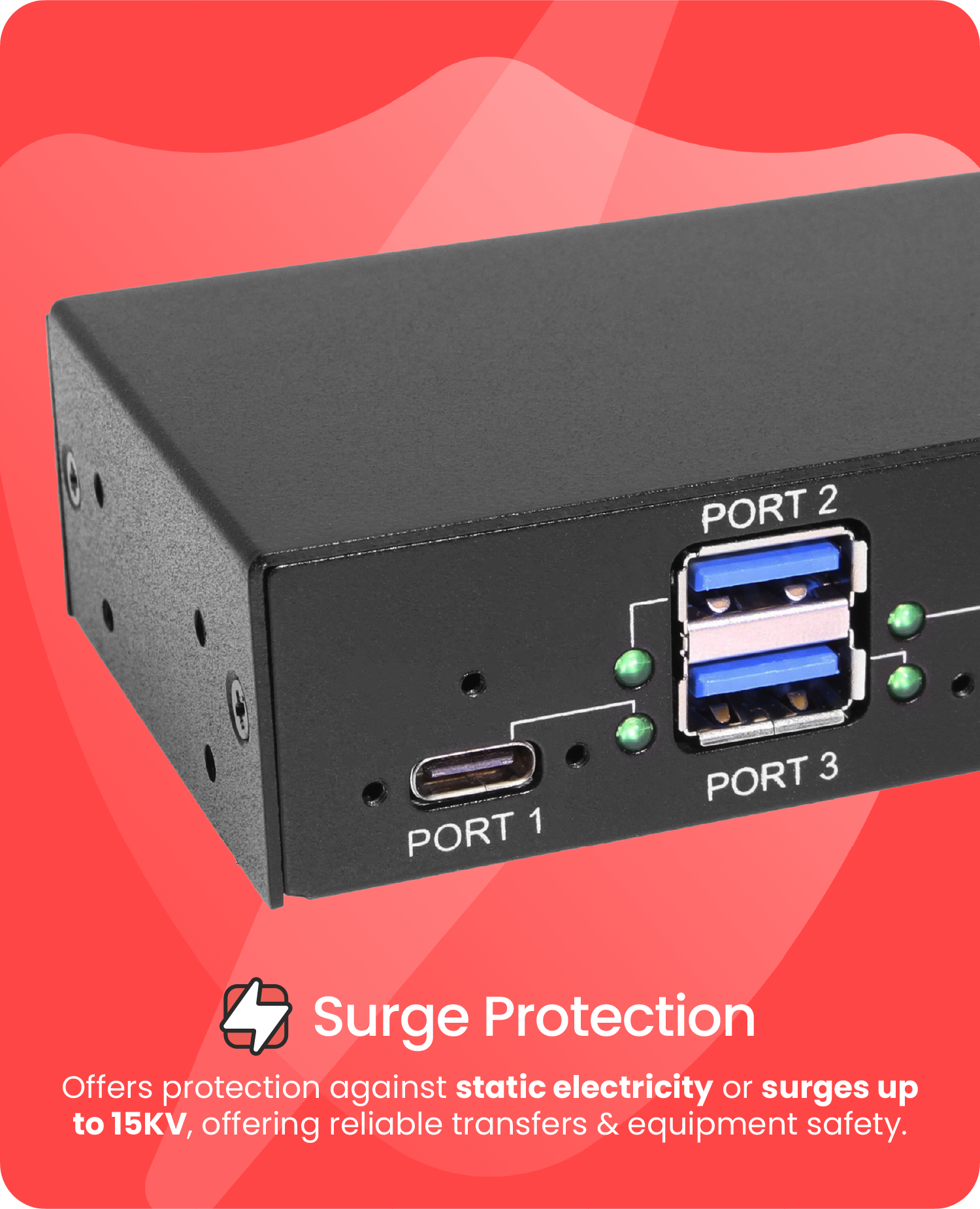

• 15KV ESD USB interface protection
• Item Dimensions: 5.28 × 2.21 × 1.07 in.

Technical Specifications

• Chipset: VL822-Q8
• Operating Temperature: 0°C – 40°C
• Operating Humidity: 5% – 85%
• Storage Temperature: -20°C ~ 50°C
• Storage Humidity: 5% – 95%
• Operating Altitude: -1000 to 10000 FT.
• Supported OS include Windows 11, 10, 8, 7, Mac OS x and Linux
• Compliant with Universal Serial Bus 3.2 Gen 2 Specification
• Maximum data transfer rate: 10Gbps
• Metal housing with mounting mechanism

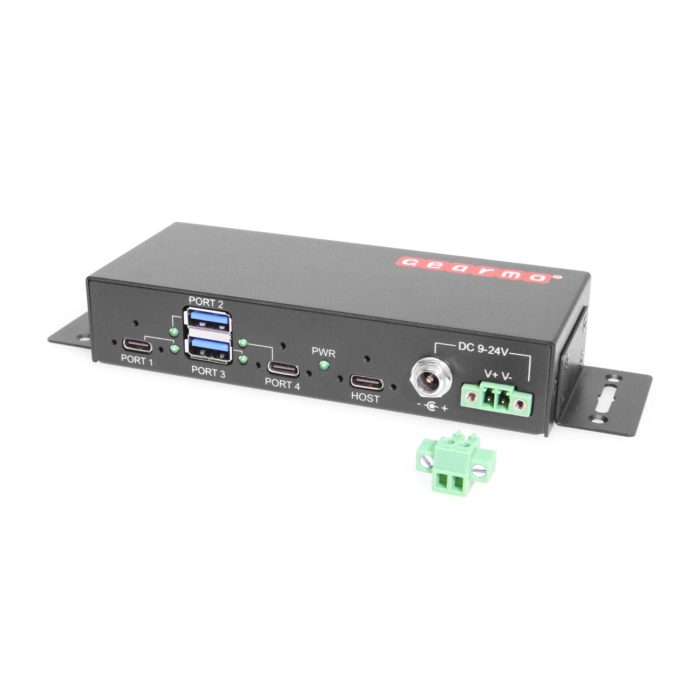

• Interfaces/Ports:
  • Input: 1, USB, Type C, Female
  • Input: 1, Terminal block (2-Wire), Power
  • Input: 1, DC power adapter jack 2.5 ID x 5.5 OD (power adapter not included)
  • Output: 2, 9-pin, USB, Type A, Female
  • Output: 2, USB, Type C, Female

Power Requirements

• Input voltage: 9VDC~24VDC

System Requirements:

• Desktop or Notebook Computer with available USB Type-Type-A or USB Type-C Port
• Windows 11, 10, 8, & 7
• Mac OS Lowest or Latest Versions
• Linux

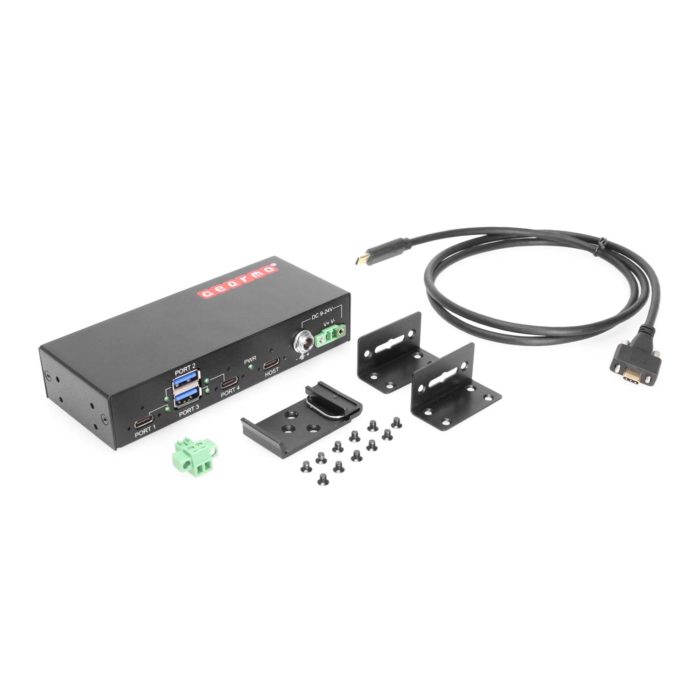

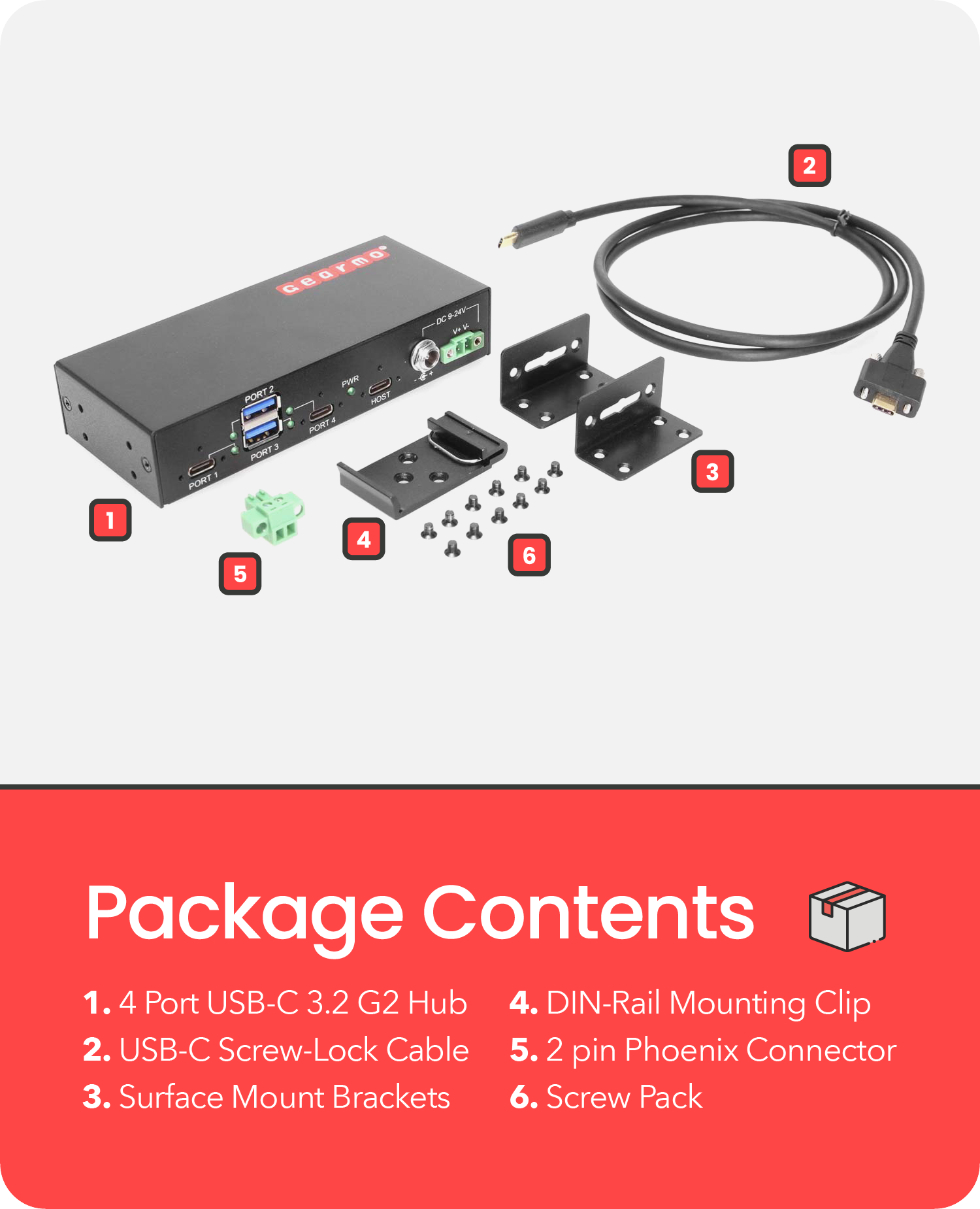

Package Contents:

• Industrial 4-Port USB 3.2 Gen 2 Type-C Hub
• USB 3.2 Gen 2 Type-C to Type-C Cable
• DIN-Rail & Wall Mounting Kit
• 2-Pin Terminal Block
• Screw Package
