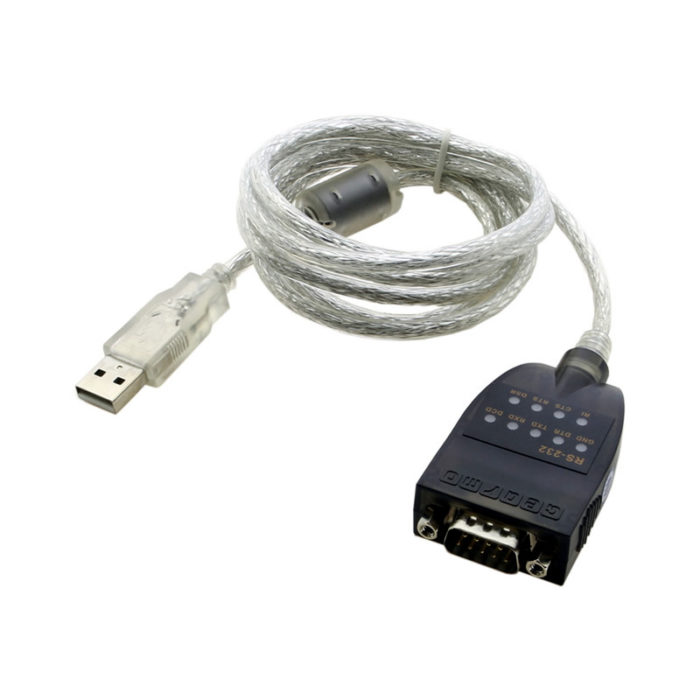

This USB serial device is a USB 2.0 to RS-232 serial adapter used to easily add a serial port to your computer even if they are unequipped with COM port ability. The GM-FTDI2-LED supports peripherals requiring a serial RS-232 connection. This USB serial adapter allows you to add a single serial port and monitor the status of your connections by using LED activity flashes.

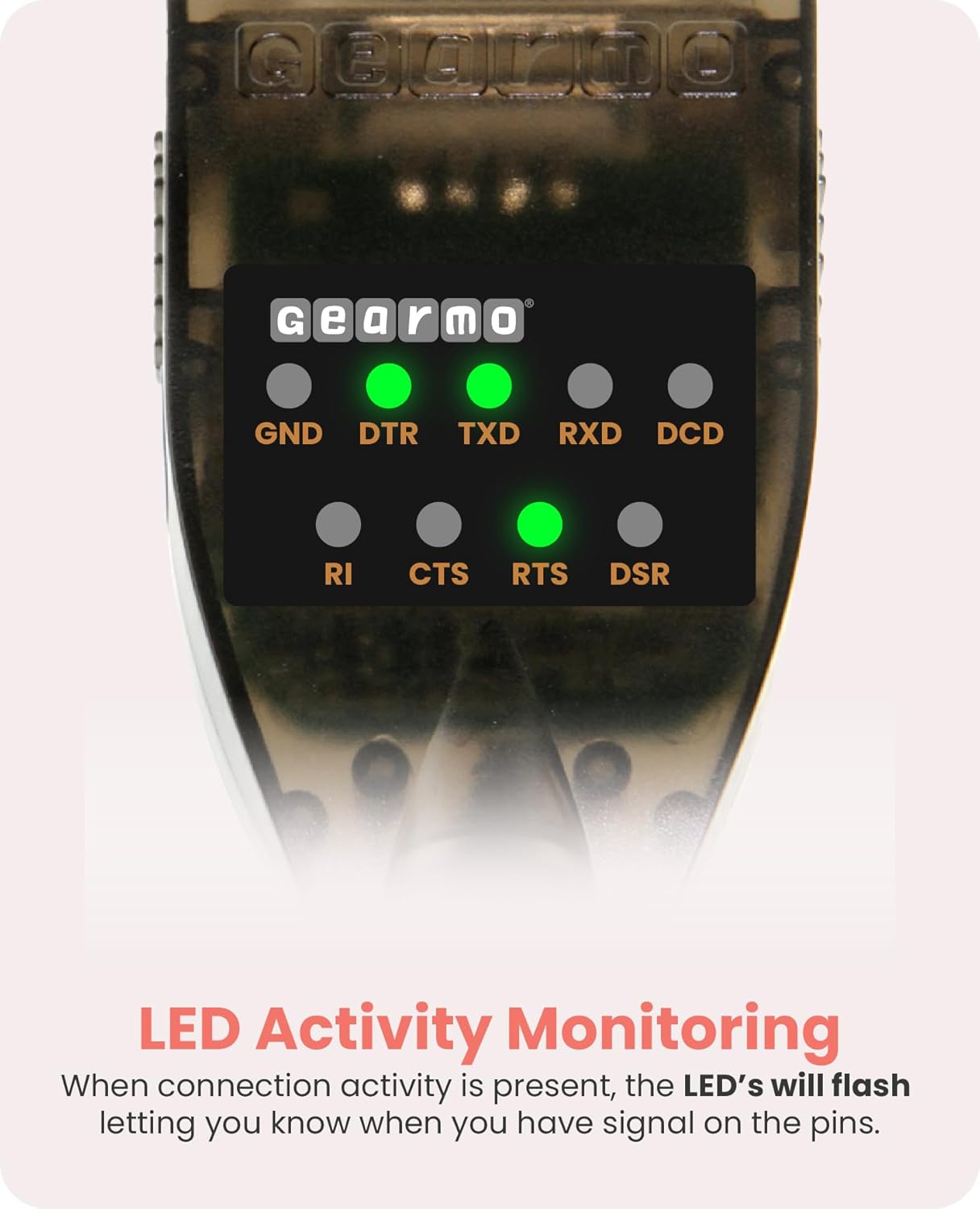

When connection activity is present, the LED’s will flash letting you know you have signal on the pins. The GM-FTDI2-LED offers an advanced an FTDI Chipset supported by Windows 11. The device is powered individually by the USB 2.0 port and is easy to install with Plug & Play and easily tests RS-232 Host to Device link with backward compatibility with USB Spec 1.1.
Package Contents:
- USB 2.0 RS232 Serial Adapter with LED’s
- Latest FTDI Driver (available for download)
- GM-FTDI2-LED Product Manual (available for download)

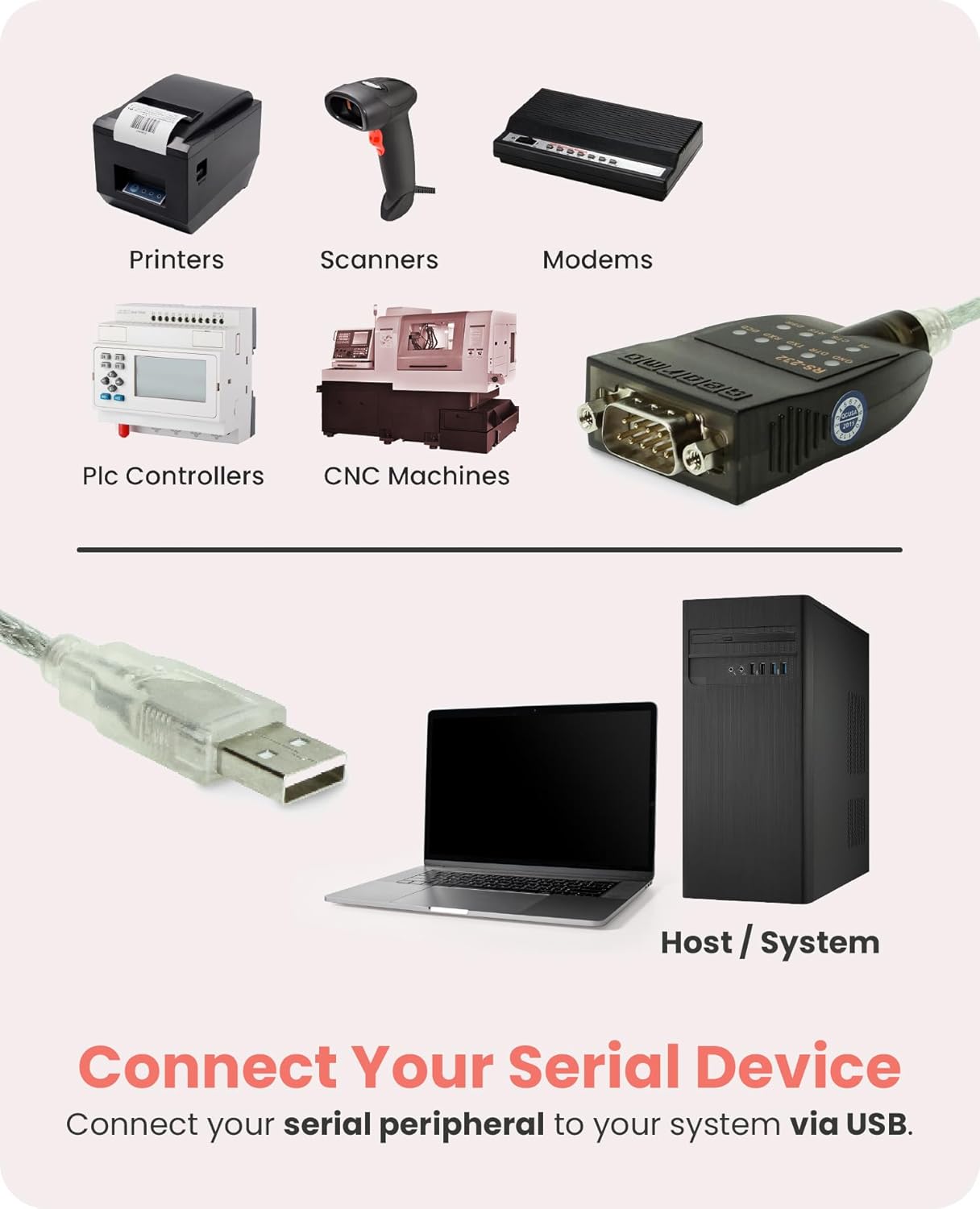

Device Support:
- PDA RS-232 Port support 56K Modem support Serial Mouse support+ Serial PC camera support
- Fully compliant with USB Spec 2.0 Compliant USB Spec1.1
- RS-232 – DB9 / M Data rate : Over 1000kbps
- ESD Protection for RS-232 I/O’ +-15KV RS-232 for DTE Mode
We’ve written a blog post on Serial Driver Support including information on Windows Operating System life cycle.

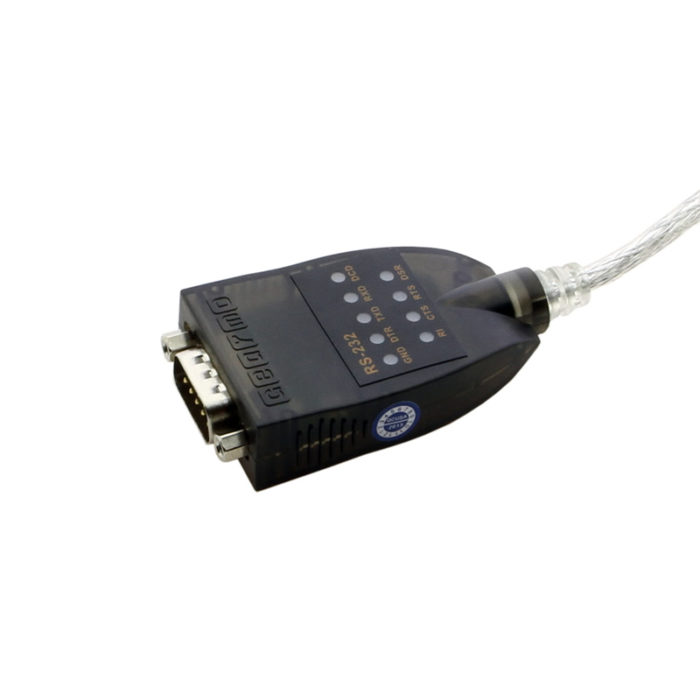

| DB-9 Pin Assignment | |||
| Pin | Data Type | Input/Output | LED Color |
| 1 IN | Data Carrier | Detect (DCD) | Green |
| 2 IN | Receive Data | Receive (RXD) | None |
| 3 OUT | Transmit | Data (TXD) | Green |
| 4 OUT | Data Terminal | Ready (DTR) | Green |
| 5 | GND | Ground Wire | Red |
| 6 IN | Data Set | Ready (DSR) | None |
| 7 OUT | Request | Send (RTS) | Green |
| 8 IN | Clear | Send (CTS) | None |
| 9 IN | Ringing | Indicator (RI) | None |
Additional Features & Specifications:
LED Color:
- 1~4, 6~9 PIN Signal 0 : Green / Signal 1 : RED GND – RED – POWER PS. DB9-F PIN / 1,2,6,8,9 NO Input LED no light
- DCD , RXD, TXD, DTR , GND,DSR ,RTS ,CTS , RI
- Easy test RS-232 Host to Device link

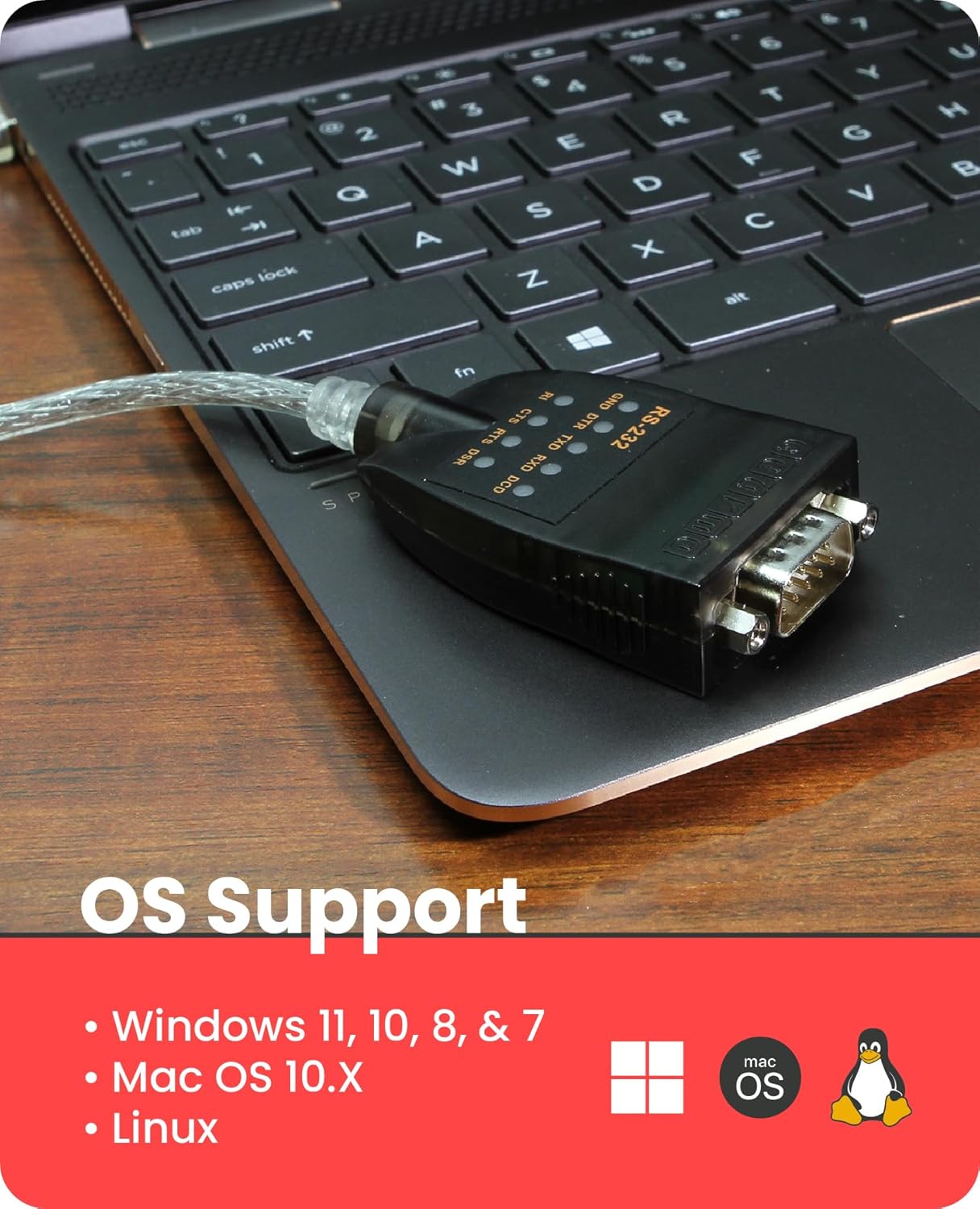

OS Support:
- Windows 7, 8, 10, and Windows 11
- Linux, Mac OS 10.X
