Description

USB to RS-485 UART Converter

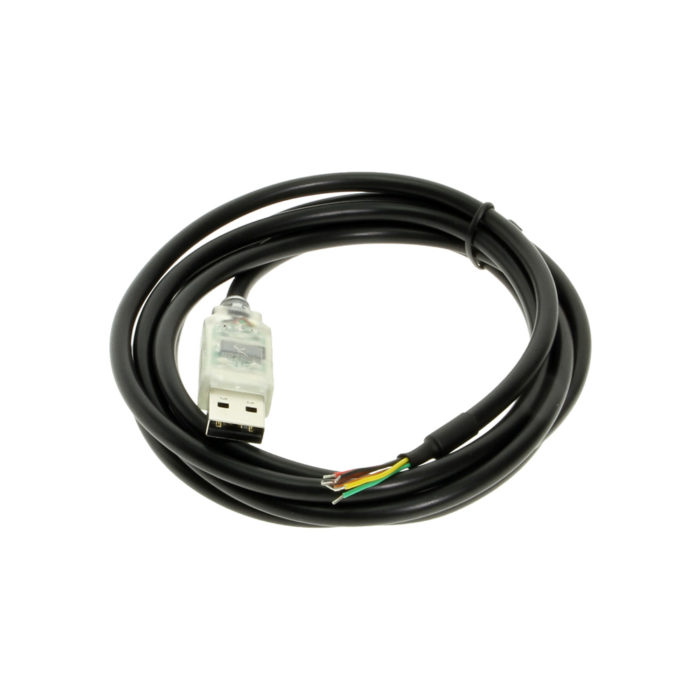

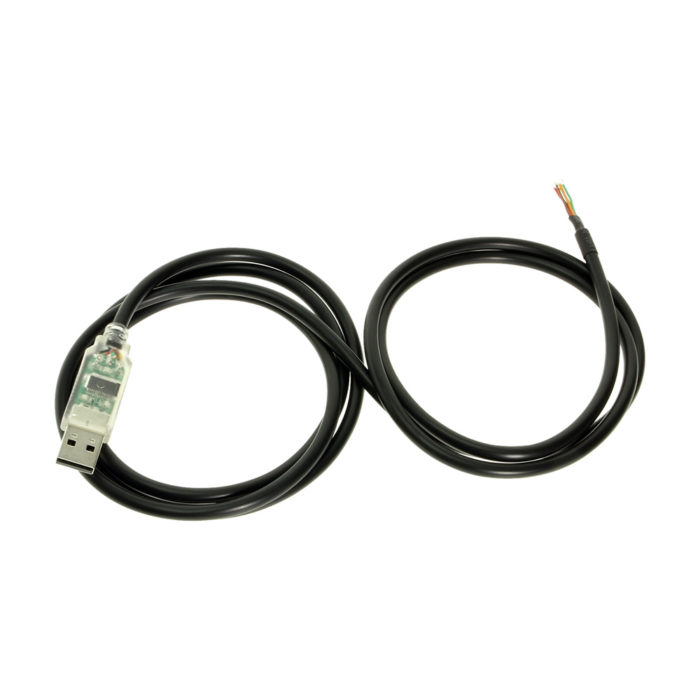

The U485WE-6FT FTDI USB to RS485 6ft. serial UART converter cable uses the FTDI FT232RQ USB to serial UART interface chip that handles all the USB signaling and protocols.

This FTDI converter cable is USB 2.0 compliant and provides the easiest way to connect devices using a RS485 protocol to USB.

Our UART converter cable contains a circuit board utilizing the FTDI FT232R chip that is manufactured into the USB host connector end of the 6 ft. cable.

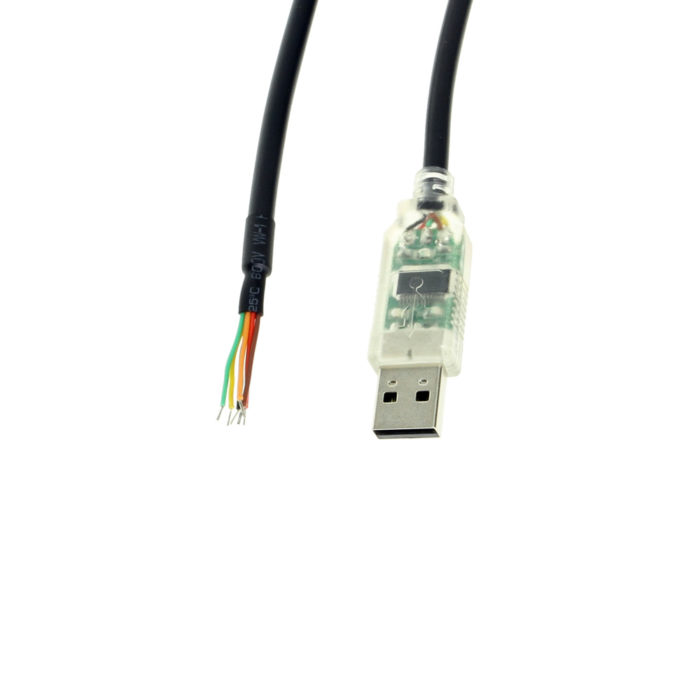

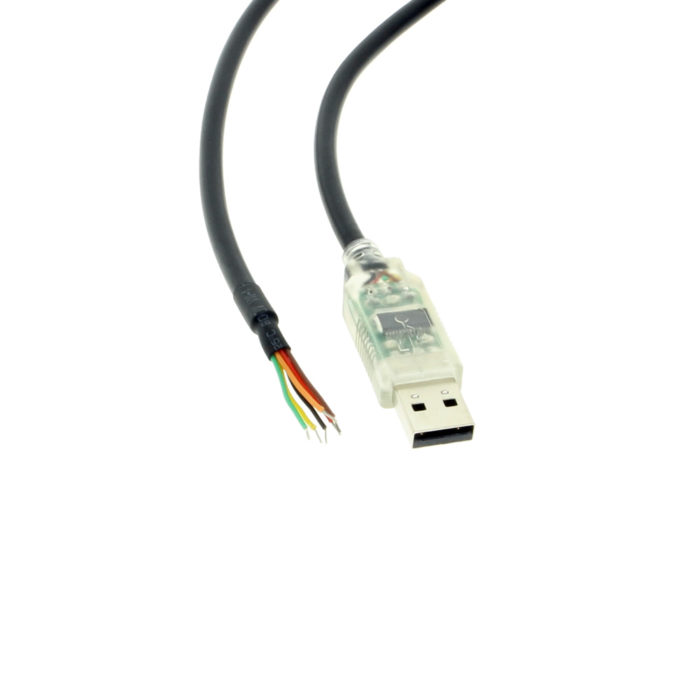

The clear molded jacket over the USB connector includes the integrated RS485 transceiver with Tx and Rx LED’s indicators that give a visual indication of traffic through the cable. The converter cable is designed for use at the end of an RS485 network up to approximately 10m.

USB to RS485 UART Converter Features

• Clear molded connector jacket to see LED indicators
• Visual indicators Tx and Rx LED for traffic status
• 6ft. cable length
• Wired ends pre-tinned for future wirng connection
• Provides a USB to RS485 serial interface
• Works with Windows and Mac systems

This USB to RS485 UART converter cable allows custom wiring with stripped wires that are already tinned in preparation for connections. The wired ends provide easy install to your RS485 communication device.
