USB to TTL 232R 3.3V FTDI Cable Open Wired End Pre-Tinned

$27.95

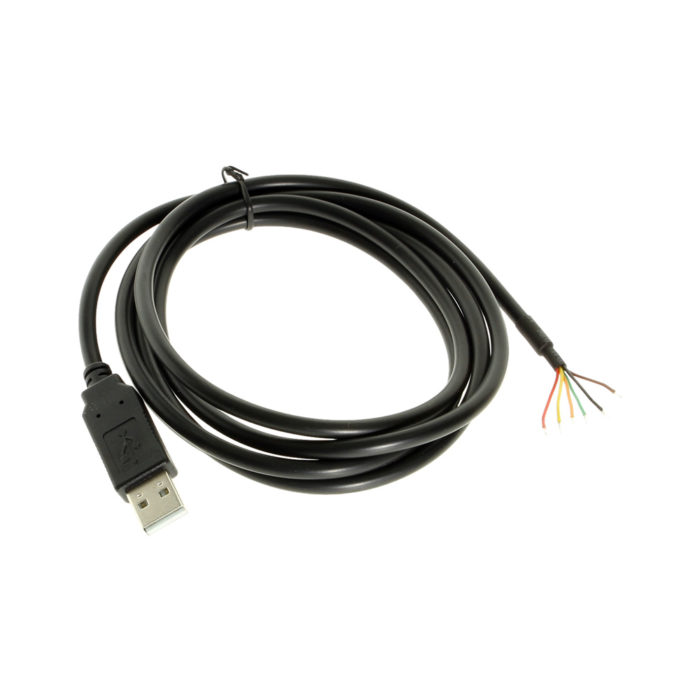

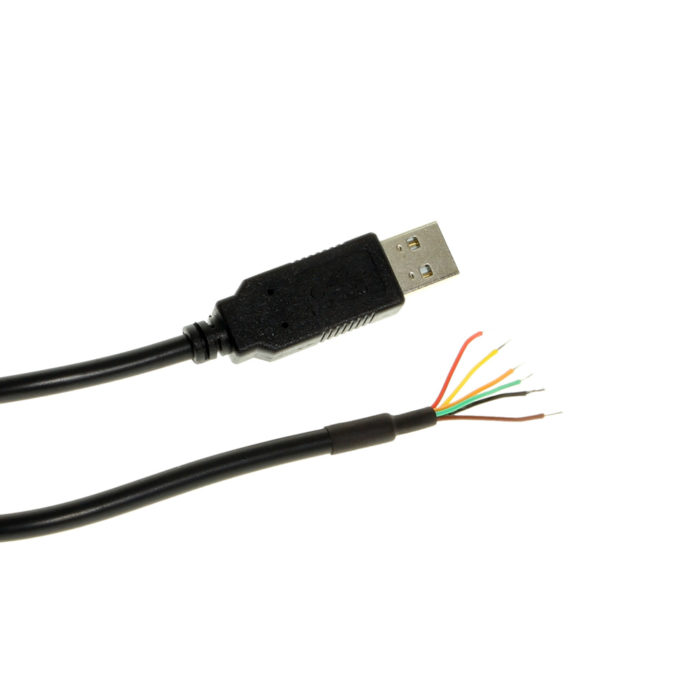

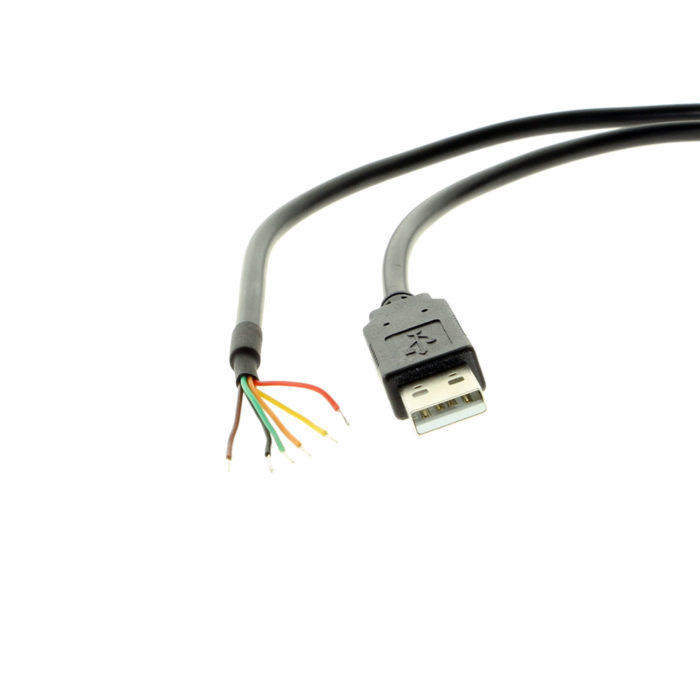

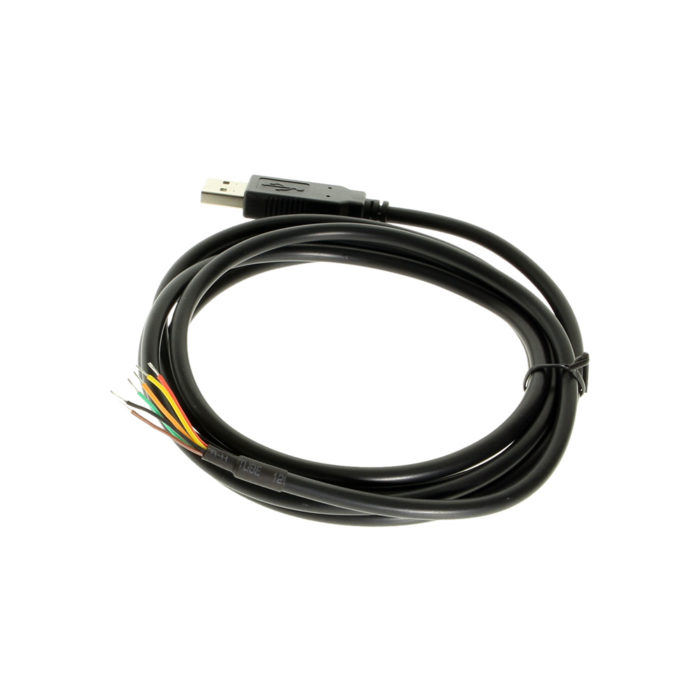

USB to TTL 232R 3.3 volt UART converter cable with FTDI, each stripped wire at the TTL end of the cable is pre-tinned in preparation for your future serial connection.

Discontinued

Model #: U232R3V3-WE Category:

Didn't Find What You Were Looking For? Support

Description

FTDI USB to TTL 232R 3.3V Cable with Wired End

The U232R3V3-WE USB to TTL is a USB to UART cable using FTDI with +3.3V TTL level UART signals. It integrates FTDI’s FT232RQ USB to serial UART interface chip which processes all the USB signaling and protocols.

The cable is 6ft. long and provides a quick connection to devices with a TTL level serial interface to USB.

The USB to TTL cable contains small circuit board utilizing the FTDI FT232R chip which is manufactured into the USB connector at end of the cable. The cable has non-terminated bare wires at other end that are tinned. The USB connector side of the cable is USB 2.0 high-speed specification compliant and USB 1.1 full speed compatible, it also provides data transfer rates from 300baud to 3Mbaud at TTL levels.

USB to TTL 3.3V Features

  • Cable length: 6 feet
  • UHCI/OHCI/EHCI host controller compatible
  • Pre-Tinned bare wire at TTL end
  • 24AWG, 2 core and spiral cable
  • USB to 3.3V TTL converter
  • Data transfer rates from 300baud to 3Mbaud at TTL levels
  • Connect directly to a micro-controller UART or I/O pins
  • Low USB bandwidth consumption
  • FCC and CE compliant
  • Support for FT232R FTDI Chip-ID feature for improved security
  • Operating temperature range from -40°C to 85°C
  • Applications: COM networking, industrial security and automotive

The cable itself is very flexible and easy to work with in serial applications and can be compact for travel if needed.

Additional information

Weight 0.156 lbs
Dimensions 7.000 × 4.750 × .750 in
Cable Length

Color

Black

Interface

USB to TTL

UPC

045079158719
